Tamtron One Power Straddle Carrier Scale

Written by develop on 27.11.2023. Posted in On-board scales, Catalog.

Container weighing solutions

The scale weighs the verified gross mass of a container accurately without slowing down the container handling processes, meeting the requirements of the SOLAS regulations. The scale can be integrated into TOS, ERP, and other systems to ensure reliable data transfer and real-time access to reports and operations monitoring.

Accuracy 0,5–2%
Weighs containers during regular port operations
Easy to install, retrofit, and service
Data transmission to TOS and other software

Send a request

ACCURATE AND USER-FRIENDLY CONTAINER WEIGHING

Type-approved and tested Tamtron One Power Straddle Carrier Scale weighs the verified gross mass (VGM) of a container accurately and meets the requirements of the SOLAS regulations. One Power Straddle Carrier Scale can be installed in all types of straddle carriers. No structural changes of the carrier are needed and therefore also retrofitting is very easy.

Download

WEIGHING INFORMATION MANAGEMENT:

With the Tamtron One Power Straddle Carrier Scale the verified gross mass (VGM) of a container can be combined with the container ID, and the data saved and transferred easily and reliably to ensure safe shipping and smooth, effective operations at the seaport. With weighing information also the demands for transparency, traceability, and ever-growing reporting liabilities can be met.

Integration possible into TOS, ERP, and other systems to ensure reliable data transfer and real-time access to reports and operations monitoring
Connectable to the weighing information cloud service, through which the weighing information is accessible in real-time
Possible to integrate into the on-board PC
Possible to collect weighing information into the same information management infrastructure from all of the Tamtron scales used at the seaport, e.g. container stacker scales, straddle carrier scales as well as from traditional weighbridges.

MODELS

Tamtron One Power Straddle Carrier Scale is available with an advanced Power weighing instrument or with a PC version that is possible to integrate into an on-board PC.

ONE POWER 300i

12 main memories for containers and other weighing-related data with a total of 10,000 memory item storing capacity
Internet data transfer

Power PC Software

Log memory for 10,000 receipts
Integration to TOS, ERP, and storage, transport, and terminal management systems

Tamtron One Power Container Stacker Scale

Written by develop on 27.11.2023. Posted in On-board scales, Catalog.

Container weighing solutions

The scale weighs verified gross mass of a container accurately without slowing down the container handling processes and meets the requirements of the SOLAS regulations. The scale can be integrated into TOS, ERP and other systems to ensure reliable data transfer and real-time access to reports and operations monitoring.

Accuracy approx. 1 %
Weighs containers during the regular port operations
Easy to install, retrofit, and service
Data transmission to TOS and other software

Send a request

CONTAINER WEIGHING ACCURATELY AND EASILY

Type-approved and tested Tamtron One Power Container Stacker Scale weighs verified gross mass (VGM) of a container accurately and meets the requirements of the SOLAS regulations. Power Container Stacker Scale can be installed in all types of container stackers. No structural changes of the reach stacker are needed and therefore also retrofitting is very easy.

Download

WEIGHING INFORMATION MANAGEMENT:

With Tamtron One Power Container Stacker Scale the verified gross mass (VGM) of a container can be combined with the ID of the container, and the data saved and transferred in an easy and reliable way to ensure safe shipping and smooth, effective operation at seaport. With weighing information also the demands for transparency, traceability and ever-growing reporting liabilities can be met.

Integration possible into TOS, ERP and other systems to ensure reliable data transfer and real-time access to reports and operations monitoring
Connectable to the weighing information cloud service, through which the weighing information is accessible in real-time
Possible to integrate into on-board PC
Possible to collect weighing information into the same information management infrastructure from all of the Tamtron scales used at the seaport, e.g. container stacker scales, straddle carrier scales as well as from traditional weighbridges.

MODELS

Tamtron One Power Container Stacker Scale is available with an advanced One Power weighing instrument or with a PC version that is possible to integrate into on-board PC.

ONE POWER 300i

12 main memories for containers and other weighing related data with total of 10 000 memory item storing capacity
Internet data transfer

Power PC Software

Total of 10 000 memory item storing capacity
Integration to TOS, ERP and storage, transport and terminal management systems
Windows compatible

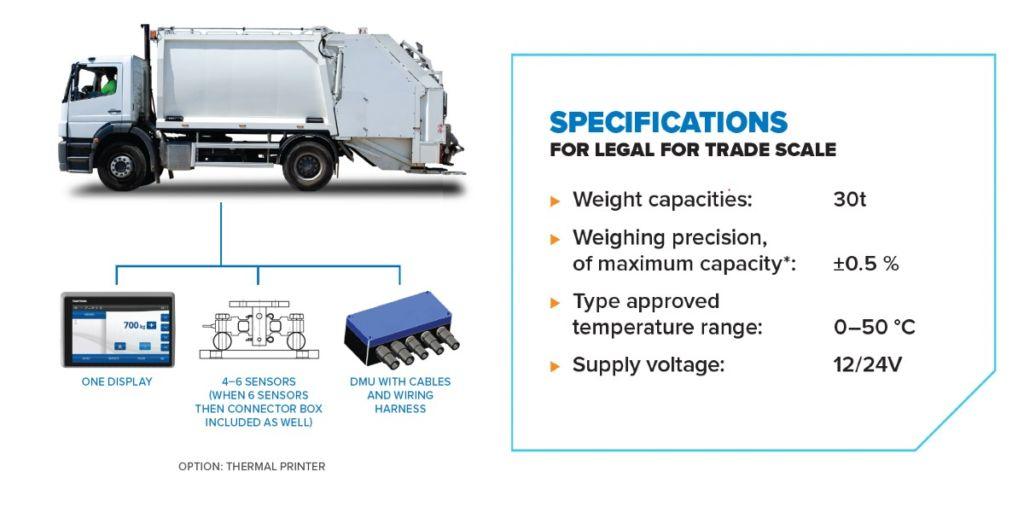

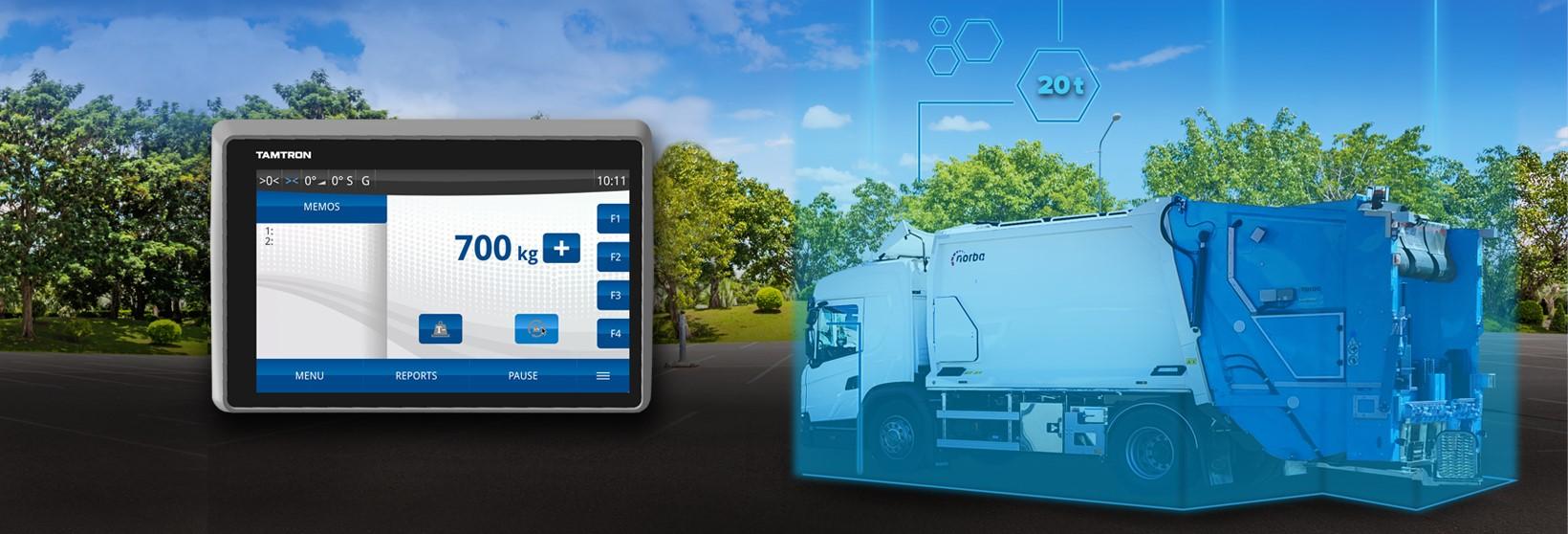

One Power Truck On-Board Scale

Written by develop on 27.11.2023. Posted in On-board scales, Catalog.

For accurate and reliable weighing at the point of collection

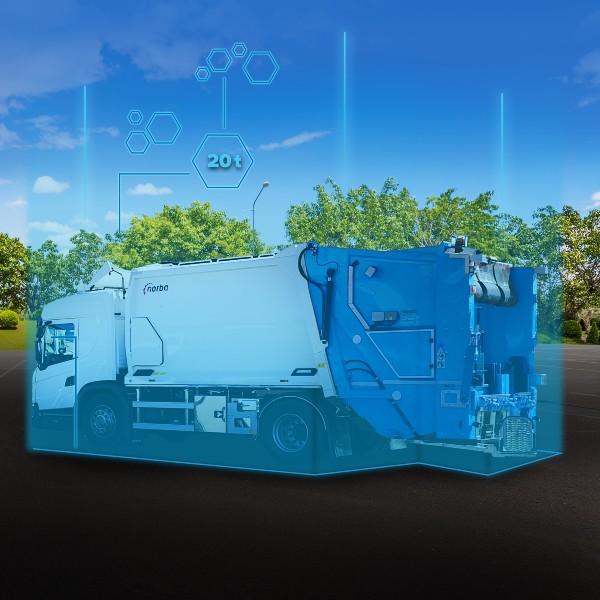

Tamtron One Power Truck On-board Scales are mounted into a vehicle and makes it possible to weigh the load without any interruptions or additional processes. The weighing information can be used as the basis for invoicing as Tamtron One Power Truck On-board Scales are approved for legal for trade. The load cells of the scale are mounted between chassis and body, which makes the weighing solution very robust and capable to withstand the demanding conditions the vehicles are operating in. Modern One Display makes the scale easy to use.

Download

Tamtron One Power Truck On-board benefits

Accurate weighing results, 0.5–2.0 %
Approved for commercial use
Weighing information can be transferred to a cloud server or, via integration, to an ERP or other system
Easy to fit
Low maintenance

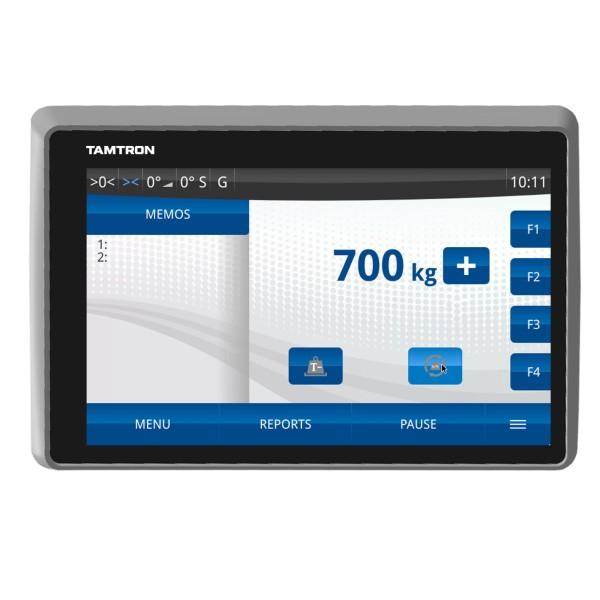

Modern Tamtron One display

Tamtron One Power Truck On-board Scales are easy to fit and can be installed to any vehicle regardless of make. Once fitted the weighing solution demands very little maintenance.

Send a request

MULTI-PURPOSE WEIGHING SOLUTION

Tamtron One Power Truck On-board can be used for load weighing in a wide variety of applications. The system can be installed in the bodywork phase on a trucks, trailers and translifters. Once mounted into a vehicle, the One Power Truck On-board scale makes it possible to weigh the load without any interruptions or additional processes.

Weighing data for all One Power Truck On-board scales is available in Tamtron’s cloud services or can be further integrated into the customer’s own systems. The weighing data collected at the point of collection can be used as the basis for invoicing as Tamtron One Power Truck On-board Scales are approved for legal for trade.

APPLICATIONS:

One Power Truck On-board Scales can be utilised in waste and recycling vehicles and livestock transport. Also in translifters, which are used in heavy industry and ports, for example, for weighing steel coils. In addition to these, the One Power Truck On-board is suitable for many other applications

1. EASY TO INSTALL

Tamtron One Power Truck On-board scale can be installed when the vehicle is built. The load cells of the scale are mounted between chassis and body, which makes the weighing solution very robust and capable to withstand the demanding conditions the vehicles are operating in. One Power Truck On-board solution is designed so that the mounting work is easy.

2. CAN BE CUSTOMISED

The usual number of load cells needed is 4 to 6, but depending on the vehicle more load cells can be delivered. Tamtron One Power Truck On-board can be customised easily to fit the customers needs. Tamtron’s experts will support in selecting the right load cells and the right number of load cells. Close cooperation with the bodybuilders and / or frame builders is essential, and the installation of the load cells must be considered at the design stage.

3. ANGLE COMPENSATED AND EASY TO TARE, ENABLING THE NET WEIGHING

Tamtron One Power Truck On-board scale is angle compensated for accurate weighing even when the conditions for weighing are demanding and surface the vehicle is standing on is not completely flat. Further more, the scale is easy to tare which enables customer specific weighing.

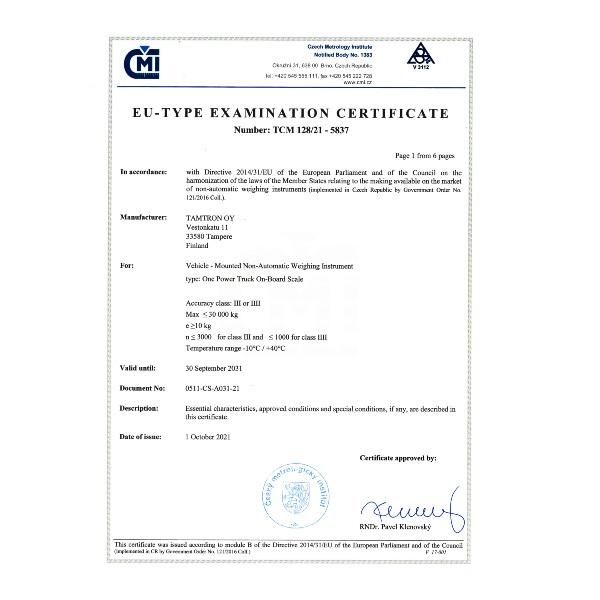

4. APPROVED FOR COMMERCIAL USE

Tamtron One Power Truck On-board scale is designed to meet the high performance and reliability demands of heavy-duty handling. This type-approved scale also meets the requirements of legal for trade regulations.

WEIGHING INFORMATION MANAGEMENT:

Weighing information collected to the memory of the Tamtron One Power Truck On-board scales can be printed with each weighing or transferred to be utilised for business activities via USB, a cloud service or integration directly to an ERP or other system.

With the electronic information transfer, orders can be transmitted directly to the scale and acknowledged as completed via the scale, making it possible to carry out invoicing immediately after the weighing. Optimised loads and information regarding transferred amounts, materials and schedules make business more efficient and bring transparency to the processes, giving tools for optimal profit-making. With the information, work sites can be optimised to be as fluent and efficient as possible and reporting between co-operation partners becomes easier.

TAMTRON ONE POWER SCALE MODELS

All One Power Truck On-board models save the weighing information to a log memory and important information, such as customers and materials, can be saved into the scale. The basic models One Power 100, One Power 150 and One Power 200 do not come with the electronic information transfer feature, but they can easily be updated to a more advanced One Power model at any time.

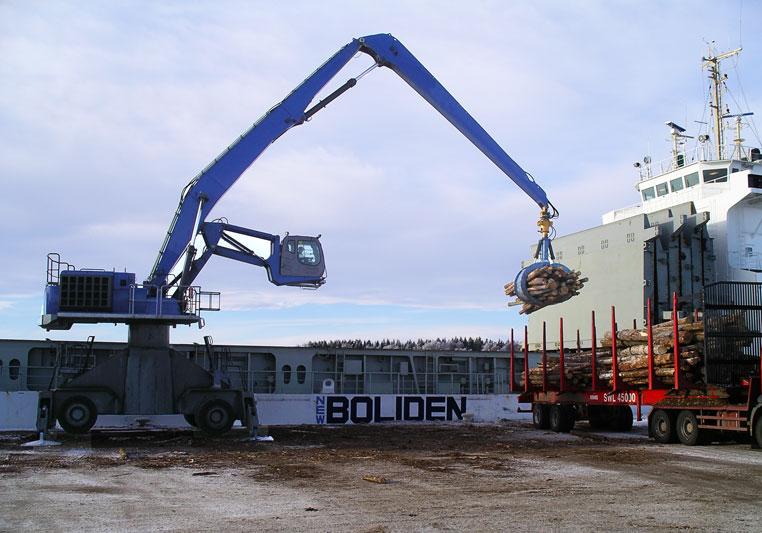

Tamtron One Power Material Handler Scale

Written by develop on 26.11.2023. Posted in On-board scales, Catalog.

The easy-to-use scale is designed for fast-paced material handling

The material handler scale approved for commercial use accurately weighs materials being moved without interrupting the work and facilitates real-time monitoring and comprehensive management of material flow.

The Tamtron Power Material Handler Scale weighs material effortlessly while it is being moved, unloaded or loaded. The weighing information can be transferred in real time to ERP or other systems, facilitating efficient material flow management.

Accurate weighing results, 1–2%
Approved for commercial use
Immersion weighing function
Weighing information can be transferred to a cloud service or, via integration, to an ERP or other system

Send a request

The easy-to-use scale is designed for fast-paced material handling and can be used together with various lifting tools.

As the Power Material Handler Scale is type-approved, invoicing can be carried out based on weighing results. The scale also allows for different materials to be easily weighed in conditions that require great reach, such as harbours and terminals, recycling plants and wood processing. The Tamtron Power Material Handler Scale is also suitable for determining the density of freshly cut wood, as it has a separate function for immersion weighing.

Download

WEIGHING INFORMATION MANAGEMENT:

Information produced by the Tamtron One Power Material Handler Scale on processed material amounts can be easily and reliably transferred to be used for business purposes, which allows for real-time monitoring of volumes being moved. The comprehensive management of material flows increases operational transparency and facilitates the optimisation of operations and schedules.

Can be integrated into an ERP or other system in order to facilitate reliable information transfer and real-time reporting and monitoring
Can be connected to a cloud service, where the weighing information will be available to be utilised easily and in real time
Can be connected to the PC-based in-vehicle computer of the material handler
Weighing information from all Tamtron scales, such as material handler scales and traditional truck scales, can be managed in the same system

MODELS

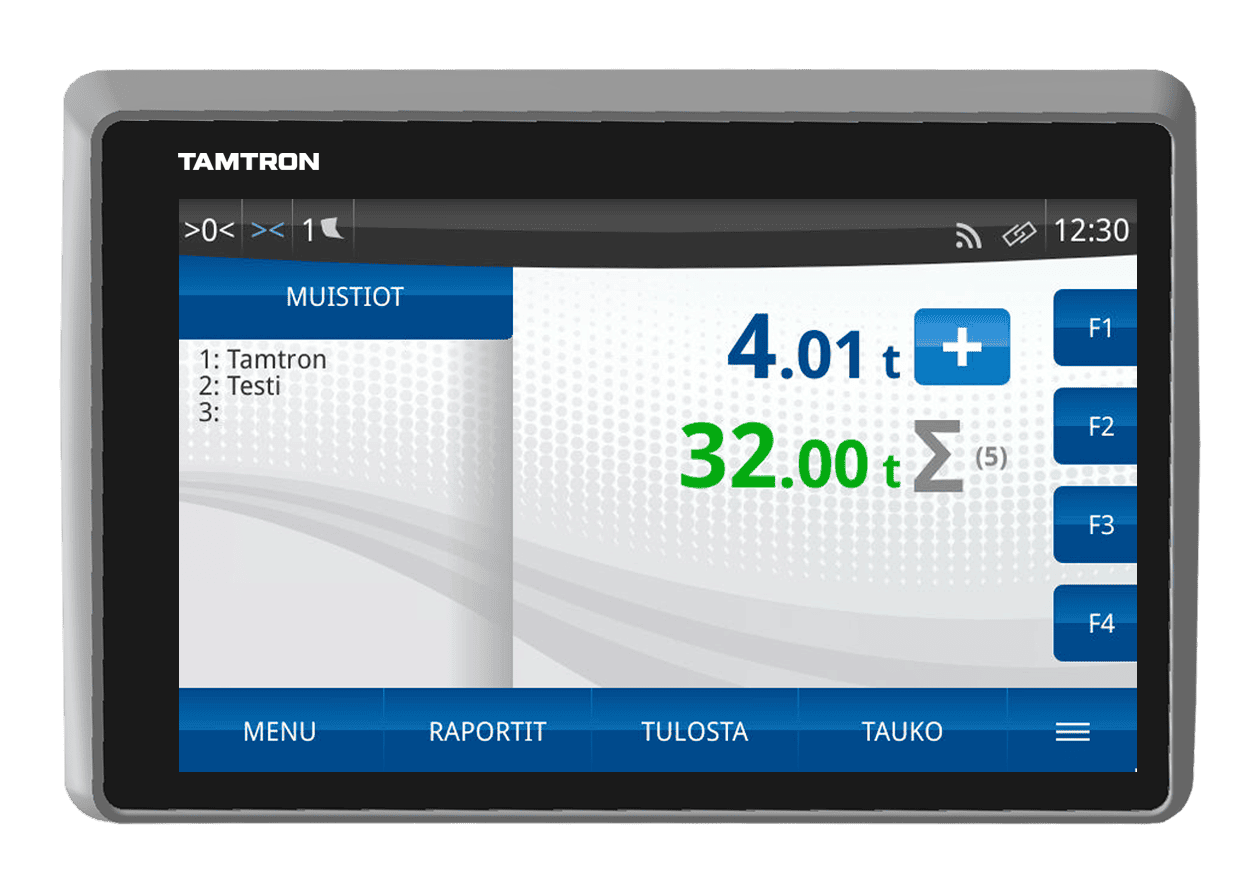

The Tamtron One Power Material Handler Scale is available equipped with an advanced One Power scale instrument or as a PC software version that is integrated into an in-vehicle computer.

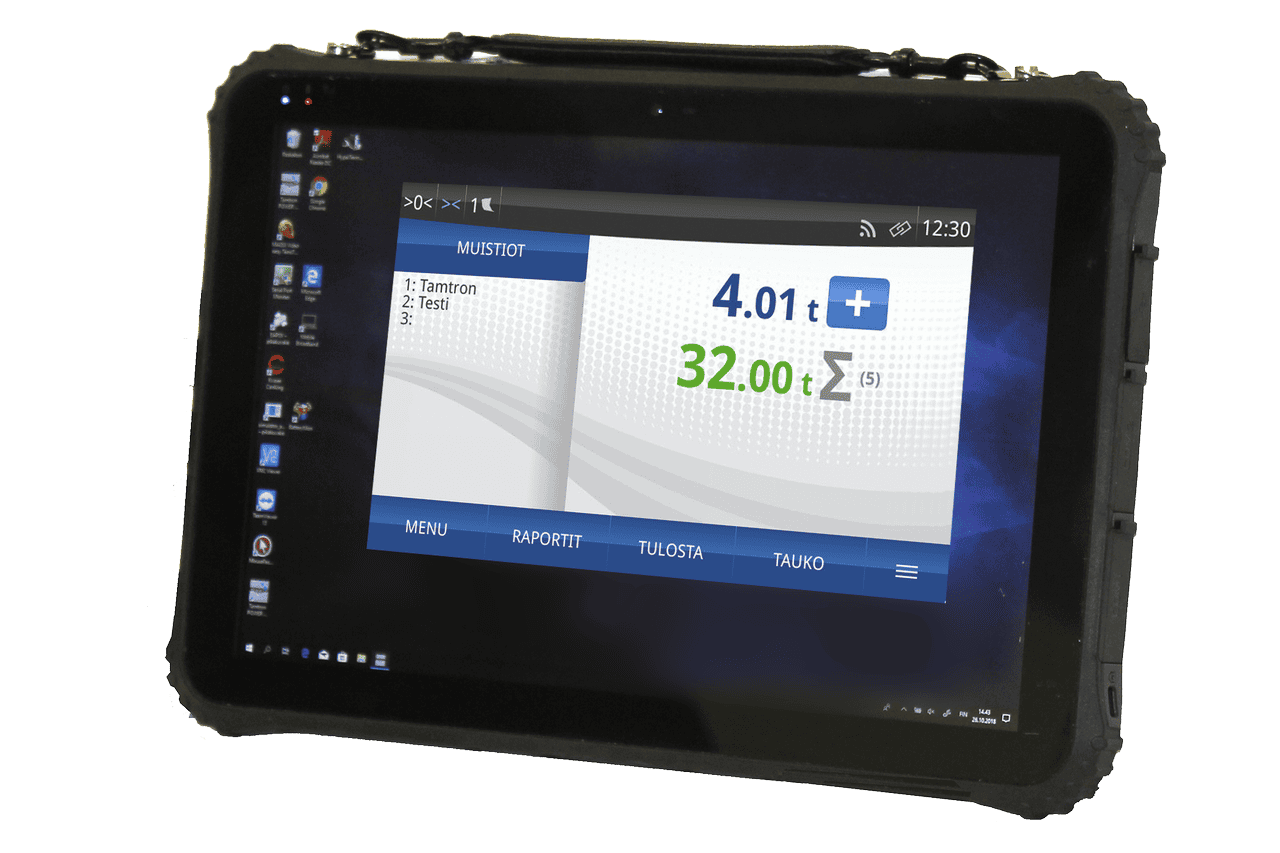

PC software

Log memory for 10,000 receipts
Integration to ERP and logistics management systems
Compatible with Windows

Power One 300i

8–12 main memories for different materials and other weighing-related data
Internet data transfer

The Tamtron One Power Material Handler Scale is also available without data transfer.

Tamtron One Power Log Handler Scale

Written by develop on 26.11.2023. Posted in On-board scales, Catalog.

Weighs wood material in motion

A scale developed for quality verification and management of wood material flows, with the ability to accurately and quickly weigh wood material in motion. The information from weighing’s can be transferred to the business for utilisation in real time.

Accurate to 1–2%
Weighs in motion during normal operations
Easy and fast to install
Easy to service and calibrate

Send a request

“With the Tamtron One Power Log Handler Scale real time information on the quality and quantity of the wood is constantly available to the business.”

FOR MONITORING THE QUALITY AND QUANTITY OF THE WOOD

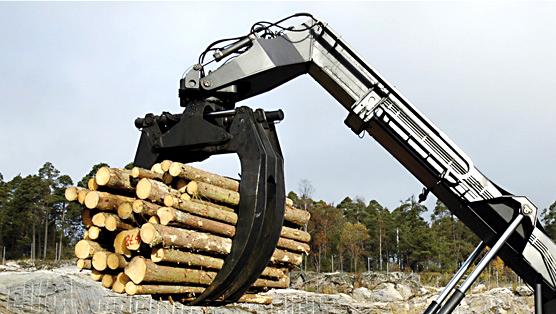

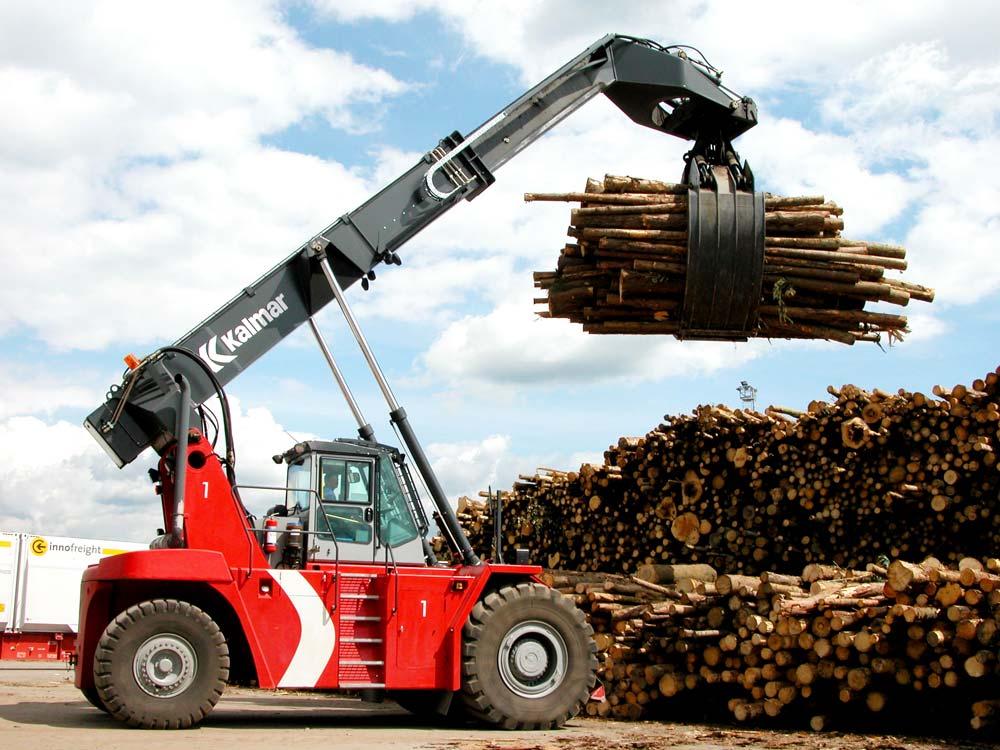

The Tamtron One Power Log Handler Scale weighs wood material during lifting, normal movement and loading of materials. The scale facilitates the management of the wood material flow and accelerates operations by transferring the weighing information to ERP and other systems within sawmills and wood chipping plants in real time.

With this scale, verifying the quality of timber is easy; materials can be weighed underwater to measure the fresh density of the timber. The scale has a separate function for immersion weighing.

TAMTRON ONE POWER LOG HANDLER SCALE

Download

WEIGHING INFORMATION MANAGEMENT:

The Tamtron One Power Log Handler Scale allows businesses to easily transfer information from wood material handled for further utilisation. With the weighing information provided by the scale, the quantity and quality of the wood can be constantly monitored.

Integration with ERP and other systems is possible, to ensure reliable data transfer and real-time access to reports and monitoring of operations
Can be connected to the weighing information cloud service, through which the weighing information is accessible in real-time
Can be integrated into an on-board PC
Weighing information can be compiled into the same information management infrastructure used by all Tamtron scales, such as log handler scales and traditional weighbridges

MODELS

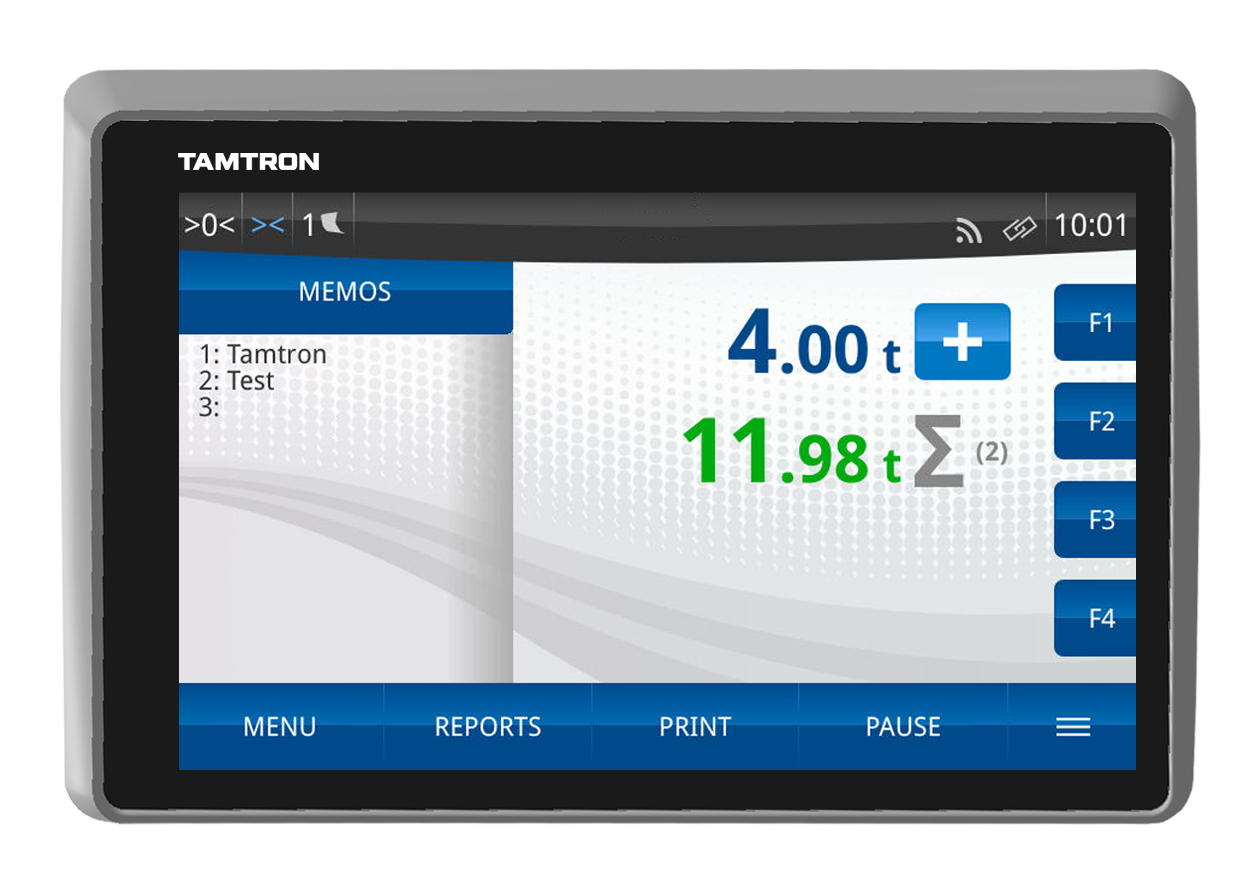

The Tamtron One Power Log Handler Scale is available with an advanced One Power weighing instrument or with a PC version that can be integrated into on-board PC.

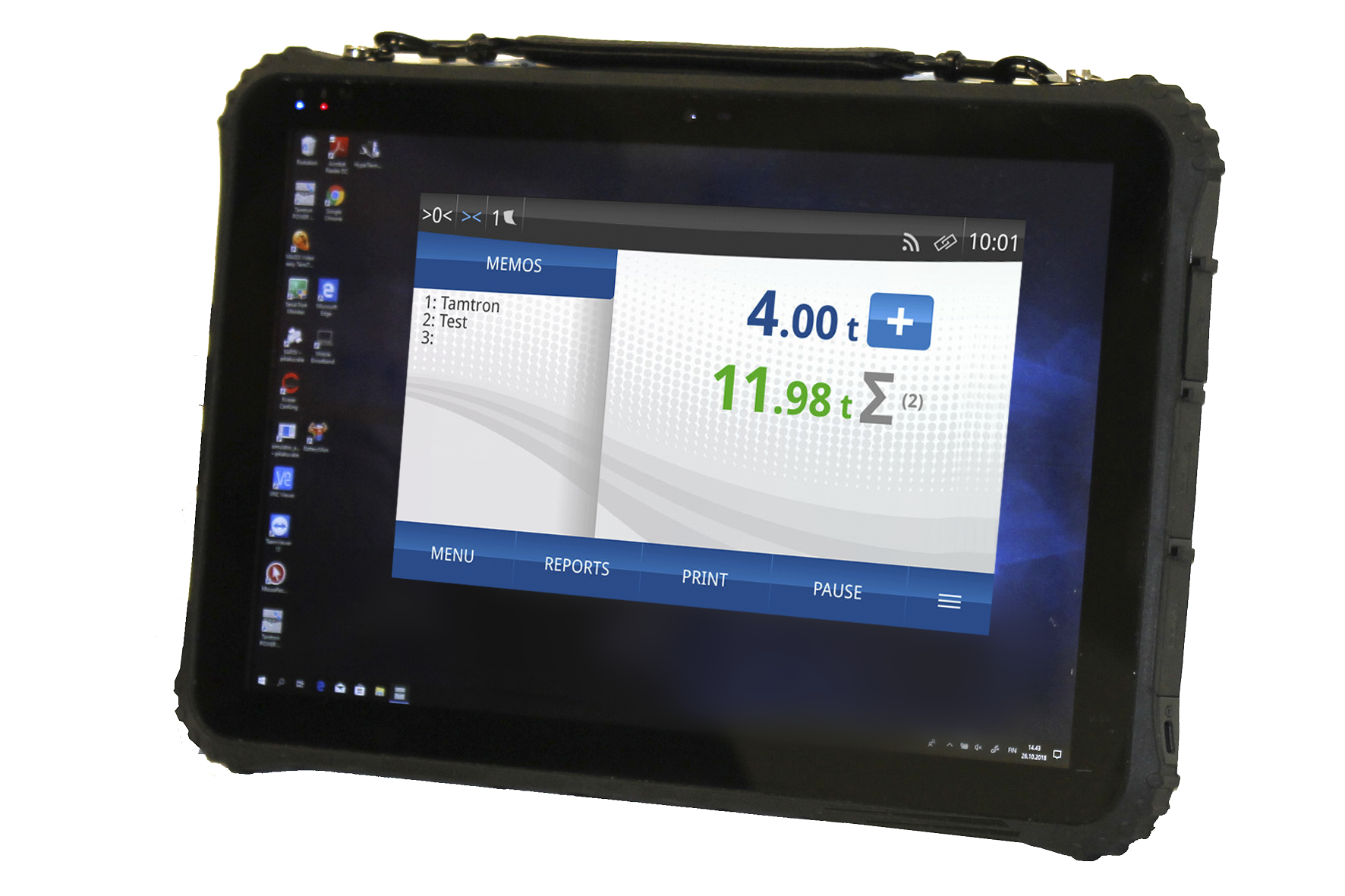

Power PC

Log memory for 10,000 receipts
Integration with ERP and other systems

ONE POWER 300i

12 main memories for different materials and other weighing-related data, with capacity to store 10,000 memory items
Internet data transfer

Forklift Scale Scalift

Written by develop on 24.11.2023. Posted in Catalog, On-board scales.

Precision cargo weighing and innovative data management for improved workflow with forklift scale

By reducing unnecessary driving, you minimize emissions and risk of accidents, improving employees’ working safety. The Scalift 100 will boost your operations’ efficiency and productivity. We developed the Scalift 100 for our customers who require fast, accurate weighing and information management for their core business.

The legal-for-trade model Scalift 200 is designed to meet the high performance and reliability demands of heavy-duty handling. This patented, type-approved scale also meets the requirements of the SOLAS regulations. The Scalift 200 is the ideal choice for applications, where extreme precision is requested, also for commercial use – such as steel mills, concrete yards, saw mills, and port operations.

Send a request

“Precision cargo weighing and innovative data management for improved workflow“

The Scalift scale suits all kinds of forklifts. Weighing takes place while loading – it is accurate and fast, saves time by loading efficiently and you easily manage your weighing log. Weighing information can be printed via RS232 port.

EFFICIENT CARGO HANDLING AND WEIGHING

The Scalift 100’s technology produces exact weighing results. The scale is rugged and informs the driver of overloads based on the given loaded capacities. The operator lifts the load as usual and weighs the load by pressing the weighing button, after which the load slightly descends, the weighing result is displayed on the screen and stored in the weighing log.

With the Scalift 200 hydraulic pressure, height, velocity and acceleration of the forks are recorded during upwards and downwards maneuvering, significantly improving the weighing accuracy and long-term stability. This patented technology eliminates the influence of mechanical friction, non-linearity and weighing tolerances caused by load positioned on fork tips. The dual tilt compensation ensures an accurate weighing result regardless of inclination of forklift mast and floor.

Options

Thermal printer
Data transfer
Load height measurement

Scalift brochure

Download

SPECIFICATIONS:

Scalift 100

Weight capacities: 5t / 18 t / 33t
Weighing precision, of maximum capacity*: ±0.5 % (*For a vehicle maintained routinely)
Temperature range: 0–50 °C
Supply voltage: 12-100 VDC
Power consumption: 5 W
Serial output: RS232
Sensor protection: IP 65

Scalift 200

Weight capacities: up to 72t
Weighing precision, of maximum capacity*: ±0.1 % (*For a vehicle maintained routinely)
Temperature range: 0–50 °C
Supply voltage: 12-100 VDC
Power consumption: 5 W
Serial output: RS232
Sensor protection: IP 65

Weighbridges for road track metal series MA

Written by develop on 17.10.2023. Posted in Truck scales, Catalog.

Metal track type scales METAS MA-S for weighing vehicles with a total length of 6 to 24 m with a maximum weighing limit of 15 to 100 tons, maximum axle load of 17.5 tons. Additionally, the scales have the function of single-axle weighing and determining the load on each axle.
